Input specifications
Describe the power the charger expects from the grid.
- Voltage min (V)
- 230
- Voltage max (V)
- 415
- Frequency (Hz)
- 50
- Phases
- 3
- Power (kW)
- N/A
DC
Charger profile

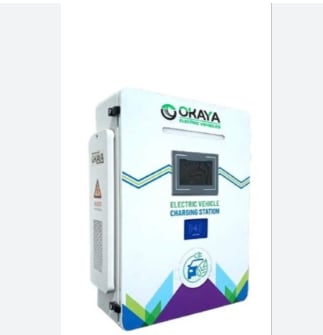

Okaya DC Wallbox
OPG Mobility (Okaya)
Okaya EV Charger Wall box DC Fast Charger 30KW (CCS Type 2) is a premium quality product from Okaya. All Okaya DC Fast charger 30KW (CCS Type 2) Wall Mounted EV Charger are manufactured by using quality assured material and advanced techniques, which make them up to the standard in this highly challenging field. The materials utilized to manufacture Okaya DC Fast charger 30KW (CCS Type 2) Wall Mounted EV Charger, are sourced from the most reliable and official vendors, chosen after performing detailed market surveys.
Company: OPG Mobility (Okaya)
- Type
- DC
- Portable
- No
- Wall-mounted
- Yes
- Standalone
- No
Output characteristics
Details about the power the charger can supply to vehicles.
- Voltage (V)
- 415
- Frequency (Hz)
- 50
- Rating (kW)
- N/A
- Max current (A)
- 200
- Outputs
- N/A
Recommended environment
Ambient and storage windows where the charger performs reliably.
- Ambient min (°C)
- 0
- Ambient max (°C)
- 55
- Storage min (°C)
- 0
- Storage max (°C)
- 60
- Humidity min (%)
- 5
- Humidity max (%)
- 95
- Altitude min (m)
- N/A
- Altitude max (m)
- 2000
Protection
Ingress, cooling, and safety protections.
- IP rating
- 54
- Cooling type
- Forced Air Cooling
- Overheating protection
- Yes
- Earth leakage protection
- Yes
Communication
Connectivity options and supported protocols.
- GSM
- Yes
- LAN
- Yes
- Wi-Fi
- Yes
- Ethernet
- Yes
- Supported protocols
- OCPP_1_6
- Vehicle protocols
- N/A
- CMS protocol details (JSON)
- N/A
