Charger profile

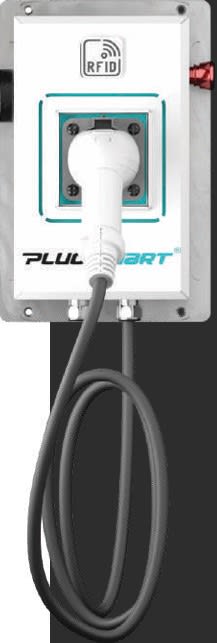

AC Micro - Single Connector (7.4 kW)

Plugzmart

IP55 - Designed for indoor and outdoor usage. LED Indication. Simple plug-and-play installation. Compact & elegant design. Bluetooth based User Authentication and remote monitoring using mobile phone app

Company: Plugzmart

Type: AC
Portable: Yes
Wall-mounted: Yes
Standalone: No

View Plugzmart brochure (PDF)

Input specifications

Describe the power the charger expects from the grid.

Voltage min (V): 220
Voltage max (V): 240
Frequency (Hz): 50
Phases: 1
Power (kW): N/A

Standby power: < 10 W

Output characteristics

Details about the power the charger can supply to vehicles.

Voltage (V): 230
Frequency (Hz): 50
Rating (kW): 7.4
Max current (A): 32
Outputs: 1

UI & controls

User interaction and authentication capabilities.

Dedicated display: No
Push buttons: Yes
Requires authentication: Yes
Auth methods (comma separated): RFID, QR code

Bluetooth: Bluetooth based authentication
Visual LED: State of Ready, Charging and Fault

Protection

Ingress, cooling, and safety protections.

IP rating: IP55
Cooling type: Natural
Overheating protection: No
Earth leakage protection: No

Over Current: Cut off when higher than Max output current value
Over Voltage: > 270 Vac
Under Voltage: < 180 Vac
Earth wire fault: Internal
Surge Protection: External, 4kV
Residual Current Leakage Breaking: External, 30 mA

Communication

Connectivity options and supported protocols.

GSM: No
LAN: No
Wi-Fi: Yes
Ethernet: Yes
Supported protocols: OCPP_1_6
Vehicle protocols: N/A
CMS protocol details (JSON): N/A

Dimensions

Physical envelope and mass.

Height (mm): 214
Width (mm): 324
Length (mm): 82
Weight (kg): 5
Footprint: Wall or Floor using pedestal

Connectors

Physical interfaces and their capabilities.

1 configured

OTHER

#195

Connector type: OTHER
Quantity: 1
Max power (kW): N/A
Max current (A): N/A
Cable length (m): N/A
Tethered: No

Connector extras

Connector Type: Universal Socket
